My First Prototype

One of the things I hoped to do when I bought my FDM 3D printer was to use it to solve small problems I was having. Today I designed and printed my first prototype. It’s not much to look at, but it is just the first iteration!
Gluing small magnets under the bases of miniatures is a common job I have to do, as it’s useful for storage, transportation, and adding some weight. Unfortunately, it’s a job that can be unnecessarily fiddly and messy. Getting the magnet to stay in place while the glue dries is a pain. Recently I hit upon a trick of using a magnet on the other side of the base to help with this issue, but making sure everything was in the right place could be made easier.

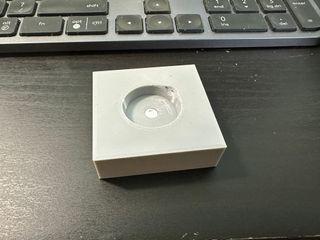

Enter what I’m nicknaming the “MagPuck” - a simple jig that will align a base with a magnet that ensures that the base magnet is held perfectly centred while glue dries. It’s simple but effective - with the prototype I was able to magnetise a batch of ten bases in just a minute or two.
No first attempt is perfect though - no doubt you’ve noticed where I had to carve out an indentation to let me lever out the base. The next iteration will have that built-in. Another change will be to make the MagPuck modular, so as to make it more efficient to print, while supporting multiple base sizes and magnet configuration. Below is a sneak peek at the next iteration, which I’ll be printing out as soon as the printer finishes some terrain I kicked off before I’d had my ideas on how to improve on the prototype.
