MagPuck Prototype v2
I posted a short while ago about my first prototype “MagPuck” base magnetising jig, and how I had some ideas to improve it. Well, I have v2 completed, and have been testing it out over the last week or so, and I love it (mostly - there are some bits that need refined still)

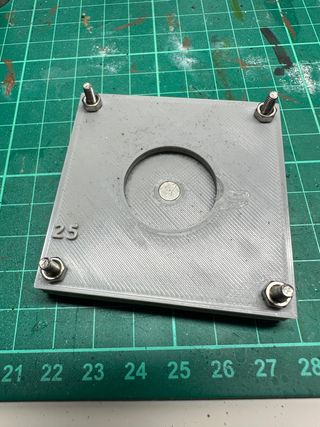

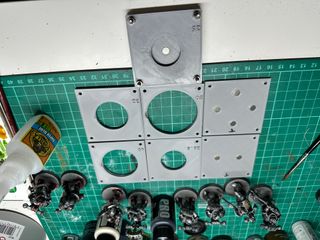

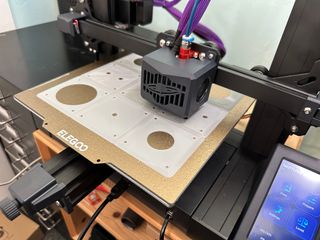

V2 moves away from the solid block, and instead uses 3 plates layered on top of each other. These are secured using M3 bolts. The bottom layer is the base plate, and is for support. The middle layer holds the alignment magnet(s), and comes in 3 configurations: single, double, or quad magnets. The top layer holds the base in place, and there are plates for bases sized from 25mm right up to 50mm.
Using the MagPuck is really simple: drop in the base, apply glue roughly where the magnets are on the 2nd layer, drop in your basing magnets, optionally apply some activator, then pop the base out - then repeat. I can now magnetise 10 25mm bases in just a couple of minutes - significantly faster, and with much less fuss and mess than before. Here’s a short demonstration video:
So what could still be better? Well, getting the base out is still a little tricky; I’ve added the small indent to make this easier, but the magnet in the base and the magnet in the jig are naturally pulling towards each other, so it needs more force than I’d like. Not much, but I have sent a base flying off my table more than once! V1 had sloping sides that made this easier, but that limited base support to just GW bases, and was more fiddly to get everything modelled correctly, so is less than ideal. Perhaps making the indent wider an/or deeper will solve the problem?
